无毛刺螺钉铣槽车

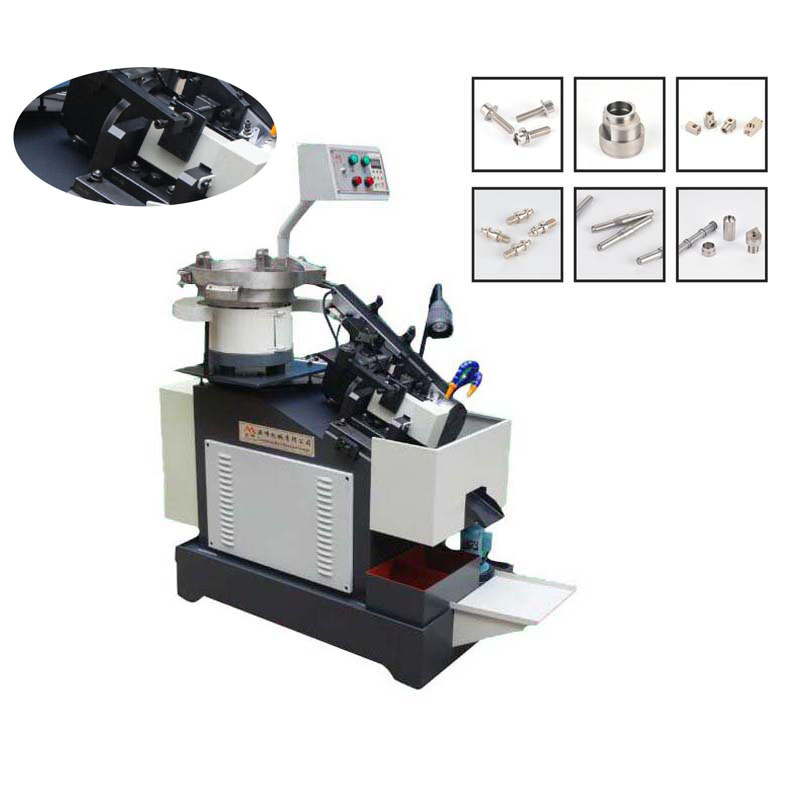

Burr-free screw milling machine |
性能
Function |
双刀对铣具备无毛刺
Burr-free double cutter milling |
|
\ |
免除后续去毛刺工序
Eliminates subsequent deburring requirement |
|
\ |
人性化设计操作简便
User-friendly design, simple to operate |
|
\ |
可变频调节自由进给
Adjustable variable frequency, free feed |
机型
Model |
ZX1.2-4 |
净重
Net weight |
400KG |
主电机
Main motor |
1.5KW |
外观尺寸
External dimensions |
1070mm X 610mmX1430mm |
每分钟生产量
Production capacity per minute |
150只-350只
150 units-350units |
铣槽刀规格
Milling cutter specification |
外径Φ35mm 内孔径Φ13mm
厚度 0.3mm-2.0mm
External diameter Φ35mm， Inner bore Φ13mm
Thickness 0.3mm-2.0mm |
可加工产品范围
Machinable product range |
外径Φ1.0mm-Φ8.0mm
杆长度2mm-35mm
External diameter Φ1.0mm-Φ8.0mm
Shaft length2mm-35mm |
 |
